lumEGG SPMP
Surfaced round LED fitting

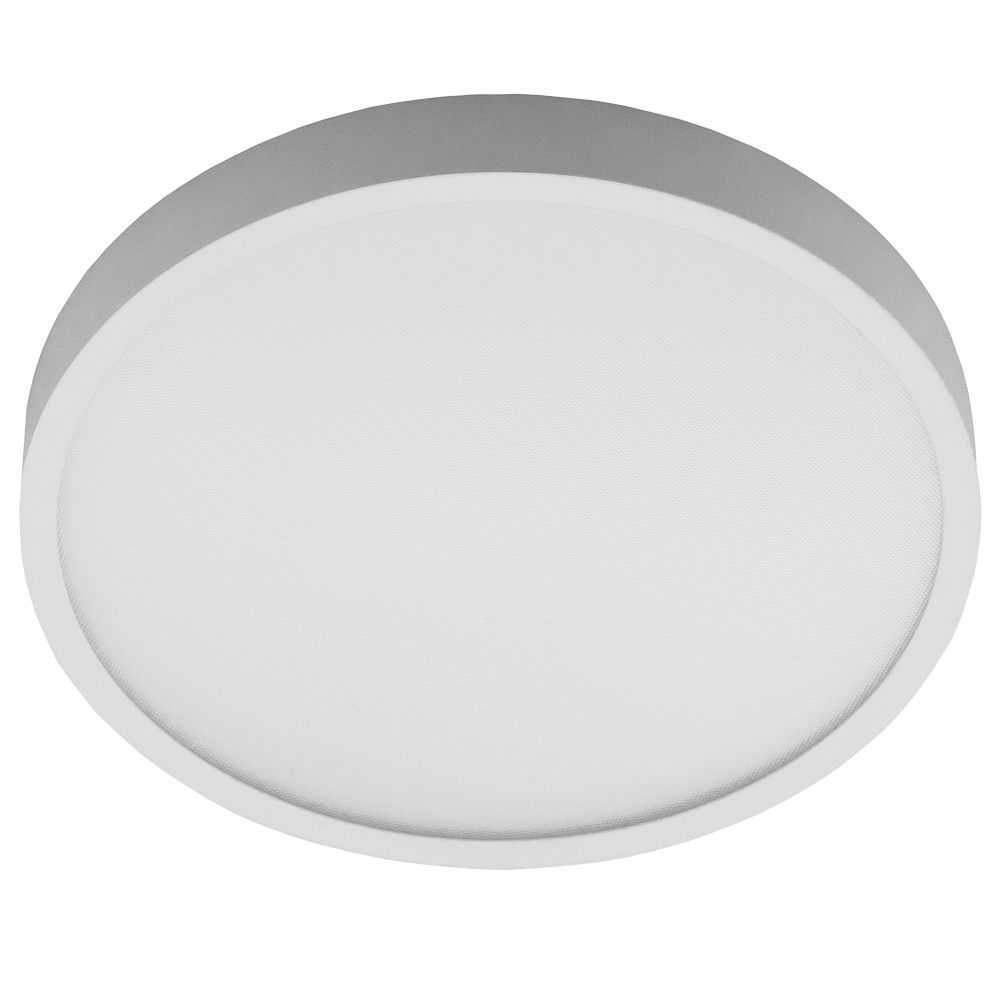

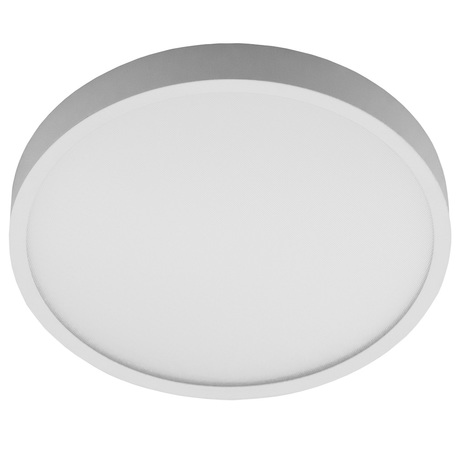

MODUS SPMP 370

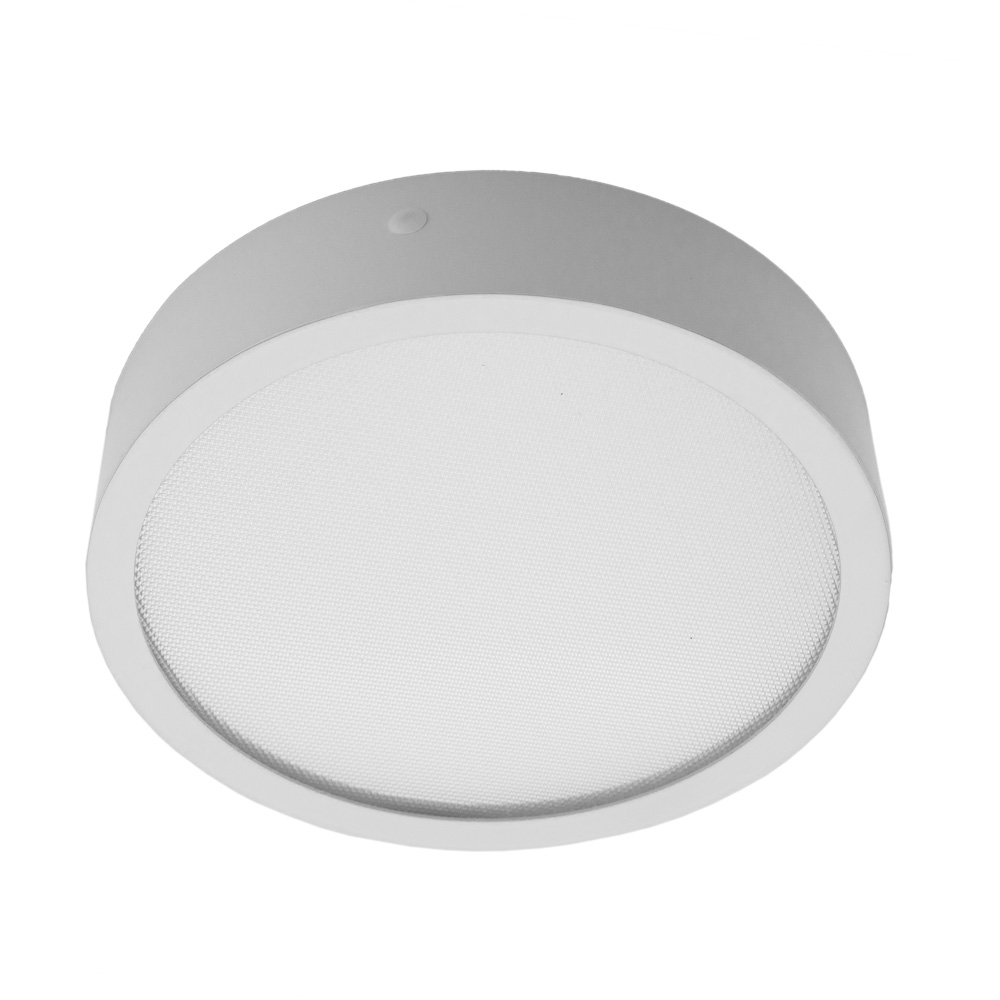

MODUS SPMP 190
Price from:
On request
Body:
White painted (RAL 9003) metal sheet
Optic:
Translucent acrylic layer with a microprizmatic cover
LED:
Mid Power LED
CRI 80 (CRI 90 on request)
3...warm white 3000K
4...cold white 4000K
Wiring:
LED driver (constant current)
ND – not dimmable (standard)
DALI – digital dimmable DALI
DIM - analogue dimmable 1-10V
| Light source type: | LED | Color temperature (K): | 2700, 3000, 4000, 5700 | Color rendering index CRI: | 80-89 | Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20 | Optical system: | KN nanoprizmatic cover KO opal cover | Light outlet: | Direct | Mounting method: | Surface mounting |
| Protection class: | II | Nominal voltage (V): | 220...240 | Type of dimming: | DALI, Not dimmable | Colour consistency (McAdam ellipse): | SDCM3 | Energy efficiency class of the built-in lamp: | A+ | Photobiologische Sicherheit nach EN 62 471: | RG 0 | CE konform: | Ja |
Filters
Effective luminous flux (lm)
System power (W)
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Outer diameter (mm)
Dimming DALI
No dim function
SPMP1000KN2/190/ND/90
Effective luminous flux (lm): 950
System power (W): 12
Color temperature (K): 2700
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1000KN3/190/DALI # S5007524
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP1000KN3/190/DALI/7016
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP1000KN3/190/DALI/9005
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP1000KN3/190/ND # 4109920
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1000KN3/190/ND/9005
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1000KN4/190/ND # 4109921
Effective luminous flux (lm): 1050
System power (W): 9
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1000KN4/190/ND/90
Effective luminous flux (lm): 1000
System power (W): 12
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN2/190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 2700
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN2/190/ND/90/9005
Effective luminous flux (lm): 1300
System power (W): 13
Color temperature (K): 2700
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN3/190/DALI/9005
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP1500KN3/190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN3/190/ND/90
Effective luminous flux (lm): 1300
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN3/190/ND/9005
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN4/190/DALI
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP1500KN4/190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KN4/190/ND/9005
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KO3/190/ND # S2875190
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP1500KO4/190/ND
Effective luminous flux (lm): 1450
System power (W): 13
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KN3/190/DALI # S5007420
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KN3/190/ND # 4109935
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KN3/370/DALI
Effective luminous flux (lm): 1900
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP2000KN3/370/DALI/9005
Effective luminous flux (lm): 1900
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP2000KN3/370/ND
Effective luminous flux (lm): 1900
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP2000KN4/190/DALI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KN4/190/DALI/9006 # S2006901
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KN4/190/ND # 4109936
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KN4/190/ND/90
Effective luminous flux (lm): 1550
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KN4/190/ND/9005
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KO3/190/DALI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KO3/190/ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KO3/190/ND/9006
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KO3/190/ND/PIR/9006
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP2000KO3/370/ND
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP2000KO4/190/DALI
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KO4/190/DALI/9006
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 190
Dimming DALI: Yes
SPMP2000KO4/190/ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 190
No dim function: Yes
SPMP3000KN2/370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 2700
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/DALI # S5007525
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN3/370/DALI/9005
Effective luminous flux (lm): 2600
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN3/370/DALI/S54
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN3/370/DALINZ
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN3/370/DALIT
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN3/370/ND # 4109922
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/ND/90
Effective luminous flux (lm): 2250
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/ND/PIR
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/NDMULTI
Effective luminous flux (lm): 3200
System power (W): 29
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/NDNZ
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN3/370/NDNZ/PIR
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/DALI # S4109925
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN4/370/DALI/9005
Effective luminous flux (lm): 2600
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN4/370/DALIT
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KN4/370/ND # 4109925
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/ND/90
Effective luminous flux (lm): 2600
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/ND/9006
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/ND/PIR
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/ND/S65
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN4/370/NDNZ
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KN5/370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 5700
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO3/370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO3/370/NDMULTI
Effective luminous flux (lm): 3100
System power (W): 29
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO4/370/DALI
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP3000KO4/370/ND
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO4/370/ND/9005
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO4/370/ND/9006
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO4/370/ND/PIR
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP3000KO4/370/NDNZ
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN3/370/DALI # S5007423
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP4000KN3/370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN3/370/ND/90/PRO # S4109950
Effective luminous flux (lm): 2750
System power (W): 36
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN3/550/DALI # S5007526
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP4000KN3/550/ND # S5007527
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP4000KN3/550/ND/9005
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP4000KN4/370/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP4000KN4/370/DALI/90
Effective luminous flux (lm): 3200
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP4000KN4/370/DALINZ
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP4000KN4/370/ND # S5003365
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN4/370/NDNZ
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN4/550/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP4000KN4/550/ND # S1025045
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP4000KN4/550/ND/90
Effective luminous flux (lm): 3250
System power (W): 34
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP4000KN5/370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 5700
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KN5/370/ND/S65
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 5700
Optical system: KN
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KO3/370/DALI
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 370
Dimming DALI: Yes
SPMP4000KO3/370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP4000KO3/550/DALI # S1312518
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KO
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP4000KO3/550/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
SPMP4000KO4/370/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 370
No dim function: Yes
SPMP5000KN2/550/DALI
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 2700
Optical system: KN
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP5000KN3/550/DALI # S5004525
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP5000KN3/550/ND
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 3000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP5000KN4/550/DALI/90
Effective luminous flux (lm): 3800
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
Dimming DALI: Yes
SPMP5000KN4/550/ND
Effective luminous flux (lm): 4500
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP5000KN4/550/ND/90
Effective luminous flux (lm): 3800
System power (W): 40
Color temperature (K): 4000
Optical system: KN
Outer diameter (mm): 550
No dim function: Yes
SPMP5000KO4/550/ND
Effective luminous flux (lm): 4300
System power (W): 40
Color temperature (K): 4000
Optical system: KO
Outer diameter (mm): 550
No dim function: Yes
Product page - PDF
CE declaration
Assembly instruction
LDT/IES files
81_1 SPMP.JPG
SPMP370.PNGProjects realized with lumEGG luminaires:
We are here to help
We'll advise you all, we have outstanding support.
Dipl. Ing. Magdalena Ragauerova
lumEGG Support - Technische Beratung, Produkt Auswahl, PlanungMobile Phone: 0152-26714590
E-mail: magdalena@lumegg.de
Product support
Do not know what kind of lighting is best for you?
Lighting calculations
Do you need to calculate the lighting?
LDT files
Do you need LDT data for your project?
Connection diagrams
Do not you know how to conect luminaires properly?
