lumEGG RH

LED lumEGG+ Flutlichtstrahler

lumEGG RH
11 L80_80000_h.jpg
3 E01_230V_50Hz.png
9 SDCM_3.png
10 3_EEC_A_plus_1.png
14 RGO EN62471.png

Price from:

On request
Contacts

3R lumEGG+ = individuelle blendfreie LED Linsentechnologie, hocheffizient

Einsatz: u.a. Shop, Industrie, Produktion, Lagerhallen, Regalanlagen, Straßen und Außenbeleuchtung, Sportstätten, Landwirtschaft

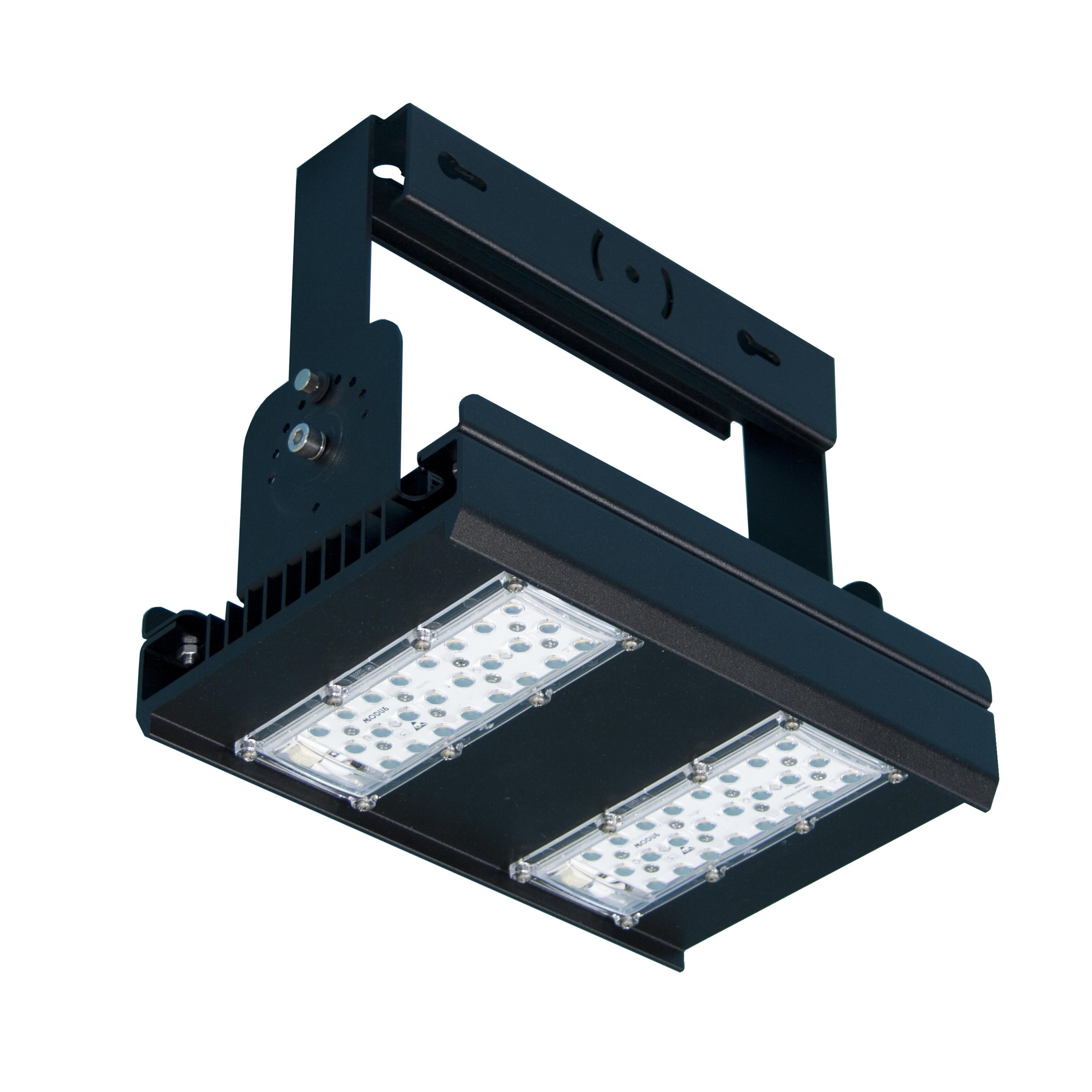

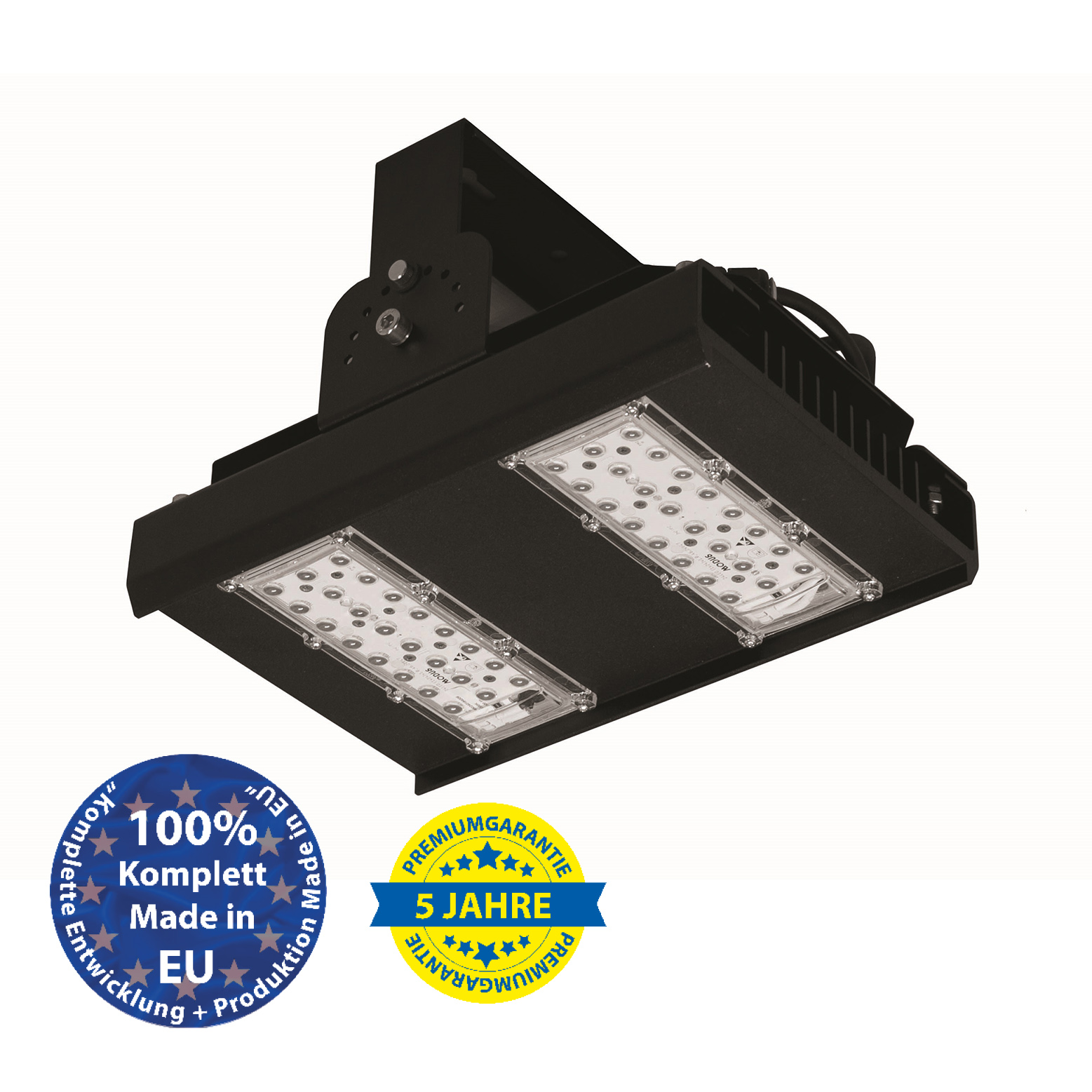

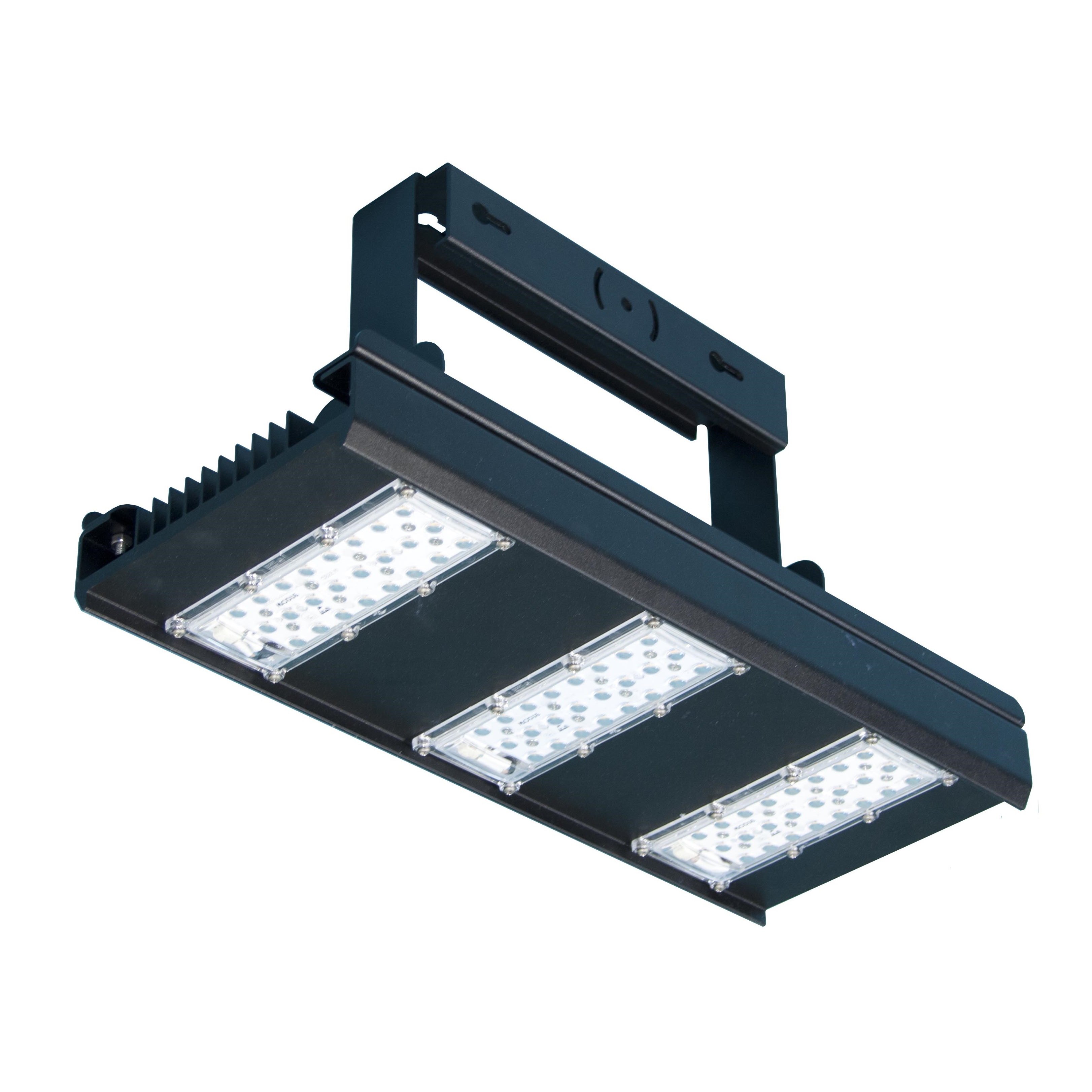

Flutlichtstrahler, lumEGG+ = individuelle blendfreie LED Linsentechnologie, Gehäuse Alu Druckguss, pulverbeschichtet schwarz. mit Montagebügel für jede horizontale und vertikale Ausrichtung, Anschlussadapter IP 65, High Power LED Dioden - Alu Board für bessere Kühlung, CRI 80

Light source type:LEDColor temperature (K):3000, 4000, 5000
Color rendering index CRI:80-89Rated lifetime L80/B50 (h):80000
Degree of protection (IP):IP65Optical system:90W
Light outlet:DirectMounting method:Surface mounting, Pendant, Wall surface mounted
Protection class:INominal voltage (V):220...240
Type of dimming:DALI, Not dimmableColour consistency (McAdam ellipse):SDCM3
Energy efficiency class of the built-in lamp:A+Photobiologische Sicherheit nach EN 62 471:RG 0
CE konform:Ja
Zobrazit více

Filters

Effective luminous flux (lm)

5200
32000

System power (W)

38
224
RH100AS4/DALI
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH100AS4/ND
Effective luminous flux (lm): 10000
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100N3/DALI
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH100N3/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100N4/DALI
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH100N4/ND # S5005879
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100N5/ND
Effective luminous flux (lm): 9800
System power (W): 75
Color temperature (K): 5000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100W3/DALI
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH100W3/ND # S5002214
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 3000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100W4/DALI
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH100W4/ND # 8308411
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH100W5/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 5000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH150AS5/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 5000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH150N4/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH150N5/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 5000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH150W4/ND
Effective luminous flux (lm): 15500
System power (W): 109
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200AS4/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
Dimming DALI: Yes
RH200AS4/ND
Effective luminous flux (lm): 22000
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200N4/DALI
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
Dimming DALI: Yes
RH200N4/ND # S5002598
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200N5/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 5000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200W3/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
Width (mm): 200
Dimming DALI: Yes
RH200W3/ND
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200W3/ND/9003
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 3000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200W4/DALI
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
Dimming DALI: Yes
RH200W4/ND # 8308520
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 4000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH200W5/ND
Effective luminous flux (lm): 21500
System power (W): 145
Color temperature (K): 5000
Length (mm): 300
Width (mm): 200
No dim function: Yes
RH300AS4/DALI
Effective luminous flux (lm): 32000
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
Width (mm): 200
Dimming DALI: Yes
RH300AS4/ND
Effective luminous flux (lm): 32000
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
Width (mm): 200
No dim function: Yes
RH300N3/ND
Effective luminous flux (lm): 30800
System power (W): 224
Color temperature (K): 3000
Length (mm): 480
Width (mm): 200
No dim function: Yes
RH300N4/ND
Effective luminous flux (lm): 30800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
Width (mm): 200
No dim function: Yes
RH300W4/DALI
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
Width (mm): 200
Dimming DALI: Yes
RH300W4/ND # 8308521
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Length (mm): 480
Width (mm): 200
No dim function: Yes
RH300W5/ND # S5008744
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 5000
Length (mm): 480
Width (mm): 200
No dim function: Yes
RH400W4/ND
Color temperature (K): 4000
Width (mm): 200
No dim function: Yes
RH50N4/DALI
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH50W4/DALI
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
Dimming DALI: Yes
RH50W4/ND # S5007898
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 4000
Length (mm): 95
Width (mm): 200
No dim function: Yes
RH50W5/ND
Effective luminous flux (lm): 5200
System power (W): 38
Color temperature (K): 5000
Length (mm): 95
Width (mm): 200
No dim function: Yes
Show all versions

Product page - PDF

KL_EN_RH.pdf >

CE declaration

POS_CZAJ_RH_18-22.pdf >

Assembly instruction

RH_NON_SELV.pdf >

LDT/IES files
