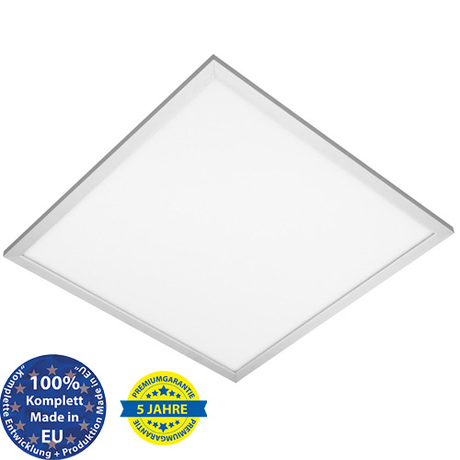

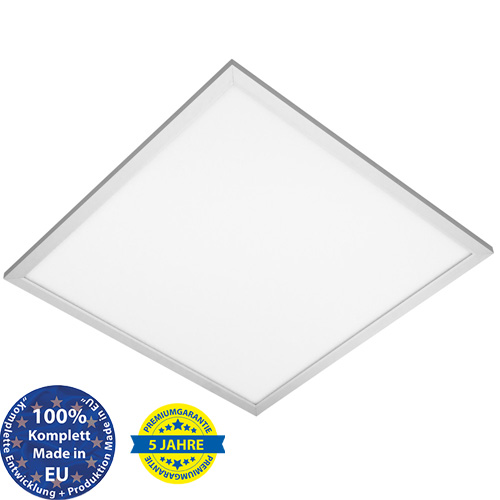

lumEGG QX MIXW

TUNABLE WHITE LED panel

lumEGG QX MIXW
MODUS QXPA MIXMODUS QXPA MIX
MODUS QN AMODUS QN A
MODUS QXPC MIXMODUS QXPC MIX
11 L80_80000_h.jpg

Price from:

On request
Contacts

Body:

Eloxal aluminium frame, painted metal surface mounting box



Optic:

Translucent acrylic layer

Opal cover



LED:

Mid Power LED

CRI 80 (CRI 90 on request)



Wiring:

LED current driver, DALI type 8



Version (body shape):

QXP..A600 - square 600x600 mm

QXP..A625 - square 625x625 mm



Application:

QXP MIX LED panel intended for dynamic illumination of interiors (tunable white), color temperature from 2700K to 6500K

It allows to customize color of the artifical light according to day period

The ideal solution for windowless rooms with long term staying of persons like in hospitals, homes for the seniors etc

Pendant / surface / recessed installation



Accessories:

QVESTRAM - a frame for recessed installation of Q or QP panels into gypsum plasterboard ceiling

ZHX11 - suspension set

Light source type:LEDColor temperature (K):2700...6500
Color temperature controllable (K):YesColor rendering index CRI:80-89, 90-100
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20, IP40
Optical system:KO
opal cover
Light outlet:Direct
Mounting method:Surface mounting, Built-in, PendantProtection class:I
Type of dimming:DALI
Zobrazit více

Filters

Effective luminous flux (lm)

2200
5800

System power (W)

21
61
QNX2500C600MIXW/B
Effective luminous flux (lm): 2200
System power (W): 25
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
QNX3000A600MIXW/B
Effective luminous flux (lm): 2800
System power (W): 32
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QNX5000C600/DI/MIXW/B/90
Effective luminous flux (lm): 4400
System power (W): 48
Color temperature (K): 2700...6500
Length (mm): 1200
Width (mm): 300
Dimming DALI: Yes
QNX5000C600/DI/MIXW/B/BTC
Effective luminous flux (lm): 5100
System power (W): 48
Color temperature (K): 2700...6500
Length (mm): 1200
Width (mm): 300
QNX5000C600/DI/MIXW/Z
Effective luminous flux (lm): 5100
System power (W): 48
Color temperature (K): 2700...6500
Length (mm): 1200
Width (mm): 300
Dimming DALI: Yes
QNXP2500A600MIXW
Effective luminous flux (lm): 2200
System power (W): 21
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QNXP4000A600MIXW/B
Effective luminous flux (lm): 4000
System power (W): 38
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QNXP4000A600MIXW/B/BTC
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
QNXP4000A600MIXW/B/BTC/90
Effective luminous flux (lm): 3400
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
QNXP4000A625MIXW # S5008965
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
QNXP4000A625MIXW/B
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
QNXP4000C600MIXW/B
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 596
Dimming DALI: Yes
QNXP4000C600MIXW/B/BTC # S2525034
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 596
QNXP4000C600MIXW/B/BTC/90
Effective luminous flux (lm): 3400
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
QX3000A600MIXW
Effective luminous flux (lm): 2800
System power (W): 32
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXP2500A600MIXW
Effective luminous flux (lm): 2200
System power (W): 25
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXP2500A625MIXW
Effective luminous flux (lm): 2200
System power (W): 25
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
QXP2500C600MIXW
Effective luminous flux (lm): 2200
System power (W): 25
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
QXP4000A600MIXW
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXP4000A600MIXW/B
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXP4000A600MIXW/BTC
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
QXP4000A625MIXW # 5008939
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
QXP4000A625MIXW/B # S0058939
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
QXP4000A625MIXW/BTC # 5008936
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
QXP4000C600MIXW # S5010020
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
QXP4000C600MIXW/B # S5013256
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
Dimming DALI: Yes
QXP4000C600MIXW/BTC # S5008936
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 296
QXP4000D600MIXW/S59
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 596
Dimming DALI: Yes
QXP6000D600MIXW
Effective luminous flux (lm): 5800
System power (W): 61
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 596
Dimming DALI: Yes
QXP6000D600MIXW/B
Effective luminous flux (lm): 5800
System power (W): 61
Color temperature (K): 2700...6500
Length (mm): 1196
Width (mm): 596
Dimming DALI: Yes
QXPD4000A600MIXW/SKY01
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXPD4000A600MIXW/SKY16A
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXPD4000A600MIXW/SKY21
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 596
Width (mm): 596
Dimming DALI: Yes
QXPD4000A625MIXW/SKY03F
Effective luminous flux (lm): 4000
System power (W): 43
Color temperature (K): 2700...6500
Length (mm): 622
Width (mm): 622
Dimming DALI: Yes
Show all versions
