lumEGG Q DI

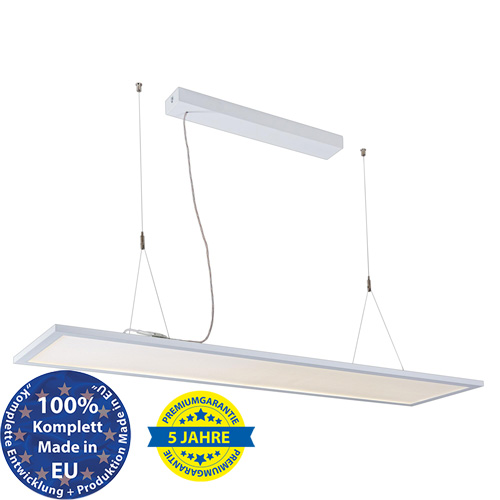

LED Pendel-Panel, UGR, DI/IN

lumEGG Q DI
11 L80_80000_h.jpg
pendel DI.jfif
3 E01_230V_50Hz.png
11 UGR_19.jpg
9 SDCM_3.png
10 3_EEC_A_plus_1.png
14 RGO EN62471.png

Price from:

On request

Design, homogen, UGR<19, für Räume mit hohen Decken, 60% direkt - 40% indirekt, SMART LED

Einsatz: u.a. Büro, Korridor, Shop, Repräsentative Räume

LED Pendelleuchte, Lichtverteilung 60% direkt/40% indirekt, Alurahmen weiß lackiert RAL 9003, incl. Aufhängungsset max. 2 m., Metall Deckenbaldachin, lichtleitende Scheibe (PMMA), Middle Power LED Dioden - Alu Board für bessere Kühlung, CRI 80

Light source type:LEDColor temperature (K):2700...6500, 2700, 3000, 4000, 5700, 6500
Color temperature controllable (K):YesColor rendering index CRI:80-89
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Optical system:KN
nanoprizmatic cover
Light outlet:Direct/indirect
Mounting method:Pendel DI
Protection class:I
Nominal voltage (V):220...240Fit for monitor workplace:Yes
Type of dimming:DALI, Not dimmableColour consistency (McAdam ellipse):SDCM3
Energy efficiency class of the built-in lamp:A+Photobiologische Sicherheit nach EN 62 471:RG 0
CE konform:Ja
Zobrazit více

Filters

Effective luminous flux (lm)

3500
9100

System power (W)

35
70
QN2C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Length (mm): 1200
Dimming DALI: Yes
QN2C600/2DI/1400DALI/Z # S5554644
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 3000
Length (mm): 1200
Dimming DALI: Yes
QN2C600/2DI/1400ND/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 3000
Length (mm): 1200
No dim function: Yes
QN2C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 2700
Length (mm): 1200
No dim function: Yes
QN2C600/2DI/B/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
QN2C600/2DI/B/1050ND
Effective luminous flux (lm): 6800
System power (W): 50
QN2C600/2DI/B/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
QN2C600/2DI/B/700DALI
Effective luminous flux (lm): 4800
System power (W): 35
QN2C600/DI/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 2900
Length (mm): 1200
Dimming DALI: Yes
QN2C600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 2900
Length (mm): 1200
No dim function: Yes
QN2C600/DI/B/700ND # S5009240
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 2900
Length (mm): 1200
No dim function: Yes
QN2C600/DI/B/700ND/Z
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 2900
Length (mm): 1200
No dim function: Yes
QN2F600/DI/1400DALI/BTC
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 3000
Length (mm): 1500
Dimming DALI: Yes
QN2F600/DI/B/1050ND # S5009241
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 3000
Length (mm): 1500
No dim function: Yes
QN2F600/DI/C/1050ND
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 3000
Length (mm): 1500
No dim function: Yes
QN2F600/DI/C/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 3000
Length (mm): 1500
No dim function: Yes
QN3A600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 52
Color temperature (K): 4000
Length (mm): 596
No dim function: Yes
QN3C600/2DI/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/1050ND/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/1400DALI/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/1400ND/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/700DALI/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/9010/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/B/1050DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/B/1050ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/B/1050ND/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/B/1400ND
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/B/700BT # S3000555
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/2DI/B/700DALI
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/B/700ND
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/B/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/2DI/C/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/2DI/C/1400DALI/Z
Effective luminous flux (lm): 9100
System power (W): 70
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/DI/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/DI/1050DALI/BTC
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/DI/1050ND # S1103610
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/DI/1050ND/90
Effective luminous flux (lm): 5000
System power (W): 54
Color temperature (K): 3800
Length (mm): 1200
No dim function: Yes
QN3C600/DI/700ND
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/DI/B/700BT # S3600700
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
QN3C600/DI/B1050ND # S5015588
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3C600/DI/B700DALI # S1181400
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
Dimming DALI: Yes
QN3C600/DI/B700ND # 5009240
Effective luminous flux (lm): 3500
System power (W): 35
Color temperature (K): 4000
Length (mm): 1200
No dim function: Yes
QN3F600/DI/1050DALI
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/1050ND # S5008223
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/1400DALI # S1400623
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/1400ND # S3600140
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/1400ND/90
Effective luminous flux (lm): 5500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/B/1050DALI # S1687523
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/B/1050DALI/BTC # S3600105
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/B/1050ND # 5009241
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/B/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/B/1400DALI/Z
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
Dimming DALI: Yes
QN3F600/DI/B/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/B/1400ND/90
Effective luminous flux (lm): 5550
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN3F600/DI/C/1400ND
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 4000
Length (mm): 1500
No dim function: Yes
QN5C600/2DI/1050DALI/Z
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
Dimming DALI: Yes
QN5C600/2DI/700ND/Z
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 5700
Length (mm): 1200
No dim function: Yes
QN5C600/DI/1050DALI/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
Dimming DALI: Yes
QN5C600/DI/1050ND
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 5700
Length (mm): 1200
No dim function: Yes
QN5C600/DI/1050ND/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
No dim function: Yes
QN5C600/DI/B/1050ND/90
Effective luminous flux (lm): 5200
System power (W): 50
Color temperature (K): 5700
Length (mm): 1200
No dim function: Yes
QN5F600/DI/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
Dimming DALI: Yes
QN5F600/DI/1400ND # S5015589
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
No dim function: Yes
QN5F600/DI/B/1050ND # S1075056
Effective luminous flux (lm): 5100
System power (W): 47
Color temperature (K): 5700
Length (mm): 1500
No dim function: Yes
QN5F600/DI/B/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 5700
Length (mm): 1500
Dimming DALI: Yes
QN6C600/DI/C/1050DALI
Effective luminous flux (lm): 5800
System power (W): 54
Color temperature (K): 6500
Length (mm): 1200
Dimming DALI: Yes
QN6F600/DI/C/1400DALI
Effective luminous flux (lm): 6500
System power (W): 62
Color temperature (K): 6500
Length (mm): 1500
Dimming DALI: Yes

Projects realized with lumEGG luminaires:


Shopping mall Tel-Aviv

Reference detail

Athletic hall - Denmark

MODUS MEGAL

Reference detail

Street lighting Horni Bezdekov

MODUS LVLEDOS

Reference detail

We are here to help

We'll advise you all, we have outstanding support.

Dipl. Ing. Magdalena Ragauerova

lumEGG Support - Technische Beratung, Produkt Auswahl, Planung

Mobile Phone: 0152-26714590

Product support

Product support

Do not know what kind of lighting is best for you?

Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
