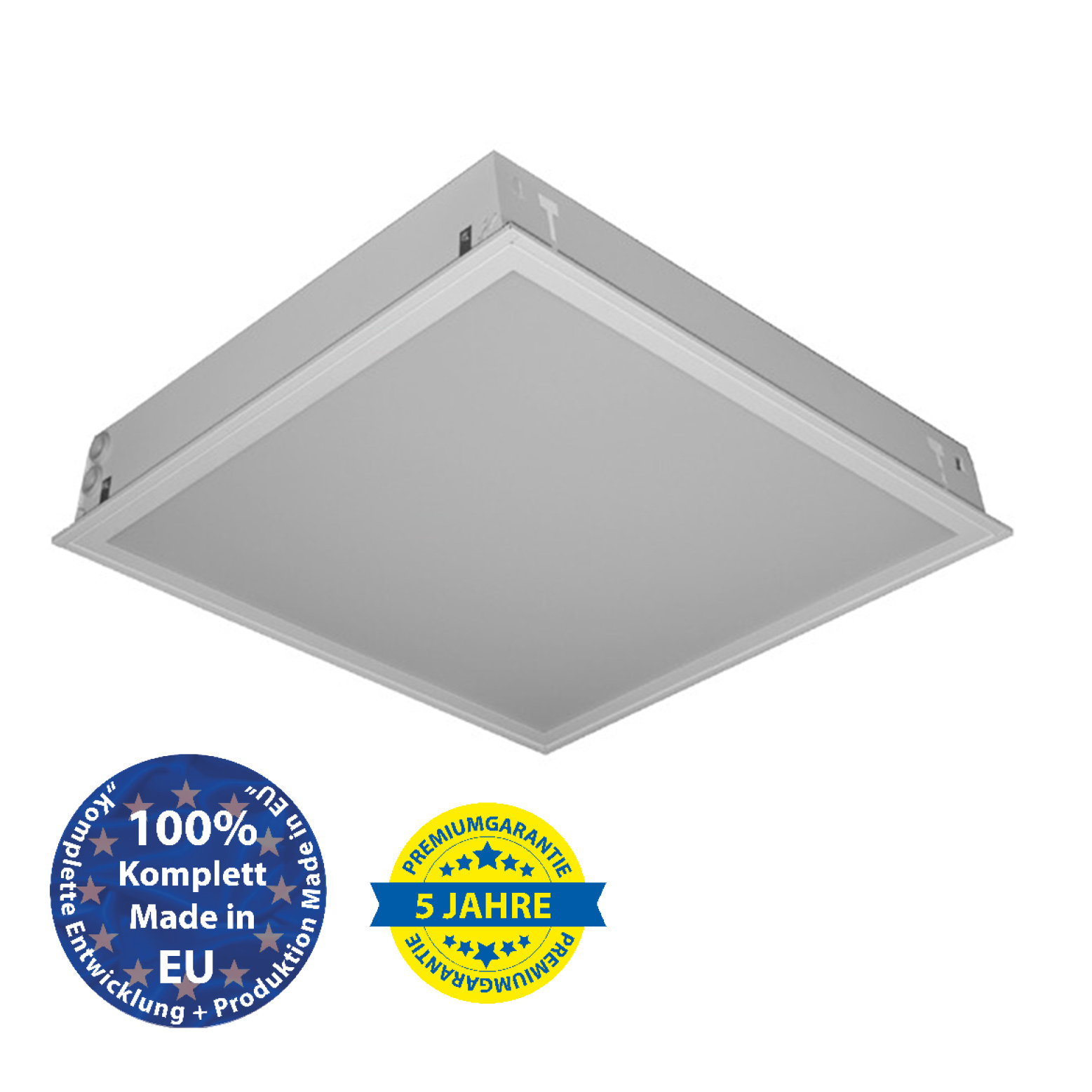

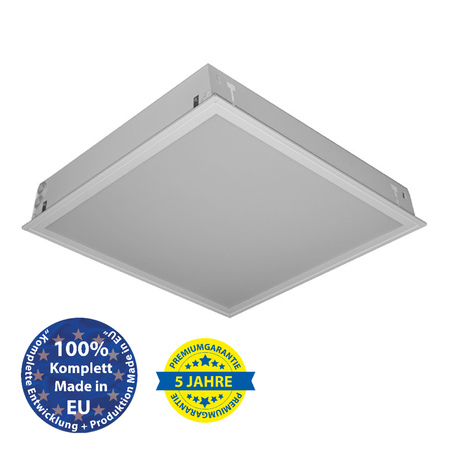

lumEGG IKL
LED Panel Einbau Einlege
Price from:
On request
Panel, UGR<19, 1 zu 1 Ersatz für T8/T5 Einbauleuchten
Einsatz: u.a. Büro, Korridor, Schulen, Shop, Sanitär und Sozialräume, Hospital, Lebensmittelverarbeitung
Backlight Panel IP40 (IP20 von oben), Einbauleuchte incl. Halteclips für Montage in Decken mit gesägten Öffnungen, und gleichzeitig Einlegeleuchte in Decken mit sichtbaren Tragschienen. Einbaumontage ohne Rahmen, passt daher in die Öffnungen klassischer T8 und T5 Einbauleuchten z.B. 4x18. Stahlblech weiß, Abdeckung lichtführende und streuende Kunststoffscheibe PS (Polystyrol), für Durchschleifverdrahtung, Middle Power LED Dioden - Alu Board für bessere Kühlung, CRI 80
| Light source type: | LED | Color temperature (K): | 2700, 3000, 4000, 5700, 6500, 2700...6500 | Color temperature controllable (K): | Yes | Color rendering index CRI: | 80-89, 90-100 | Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20, IP54 | Optical system: | KN nanoprizmatic cover KO opal cover | Light outlet: | Direct |
| Mounting method: | Surface mounting, Built-in, Einlege | Protection class: | I | Nominal voltage (V): | 220...240 | Fit for monitor workplace: | Yes | Colour consistency (McAdam ellipse): | SDCM3 | Photobiologische Sicherheit nach EN 62 471: | RG 0 | CE konform: | Ja |
Filters
Effective luminous flux (lm)
System power (W)
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
No dim function
IKL10000D4KO600ND
Effective luminous flux (lm): 9400
System power (W): 75
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL2000B4KN600ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL2000B4KN625ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL2000B4KO600ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL2000XC4KN600ND
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL3000A4KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL3000A4KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL4000A3KN600ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IKL4000A3KN625ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IKL4000A4KN600DALI
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000A4KN600ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000A4KN600NDNZ
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000A4KN625ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000A4KN625NDNZ
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000A4KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL4000A4KO625ND # 5009915
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL4000C3KO625ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IKL4000C4KN600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000C4KN625ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL4000C4KO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL4000C4KO625ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL5000A4KN600ND
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000A3KO600DALI/90
Effective luminous flux (lm): 5550
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IKL6000A3KO625DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL6000A4KN600ND
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000A4KO600DALI/90
Effective luminous flux (lm): 5550
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL6000A4KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL6000A4KO625ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL6000C4KN600ND
Effective luminous flux (lm): 7300
System power (W): 57
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000C4KO625ND
Effective luminous flux (lm): 7100
System power (W): 57
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL6000C6KN600DALI/90
Effective luminous flux (lm): 6300
System power (W): 57
Color temperature (K): 6500
Optical system: KN
No dim function: Yes
IKL6000F4KN600ND
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000F4KN600ND/90
Effective luminous flux (lm): 5300
System power (W): 50
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000F4KN600NDNZ/90
Effective luminous flux (lm): 5300
System power (W): 50
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000F4KN625ND
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL6000F4KO600ND
Effective luminous flux (lm): 6000
System power (W): 50
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL8000D4KO600ND
Effective luminous flux (lm): 7800
System power (W): 59
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL8000F4KN600ND
Effective luminous flux (lm): 8400
System power (W): 69
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IKL8000F4KO600ND
Effective luminous flux (lm): 8000
System power (W): 69
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL8000F4KO625ND
Effective luminous flux (lm): 8000
System power (W): 69
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IKL8000F4PCN625ND
Effective luminous flux (lm): 8400
System power (W): 69
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
