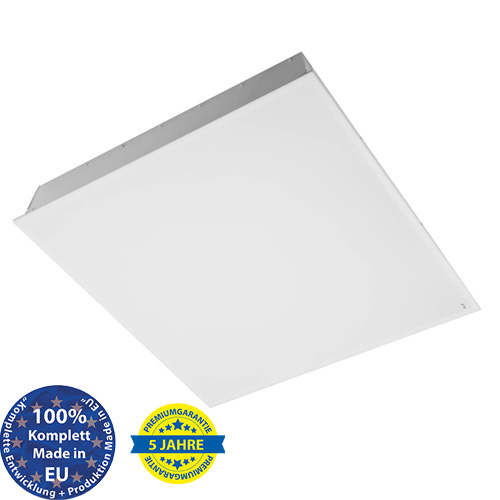

lumEGG IB

Recessed LED fitting

lumEGG IB
11 L80_80000_h.jpg
3 E01_230V_50Hz.png
11 UGR_19.jpg
9 SDCM_3.png
10 3_EEC_A_plus_1.png
14 RGO EN62471.png

Price from:

On request
Contacts

Body:

White painted (RAL 9016) metal sheet



Optic:

KO - opal PS cover

KN - microprizma cover



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI



Application:

- Recessed - lighting for installation into false ceiling with visible supporting structure (both 600x600 or 625x625 modules).

- Installation into a gypsum plasterboard ceiling can by done with a QVESTRAM frame

The fixture can not be open - emergency module no available



Versions:

600 - for 600 module

625 - for 625 module

K - with GESIS connector

F - with flexible cord



Accessories:

IBMICROA - microprizmatic cover UGR<19, for square shape fittings

IBMICROC - microprizmatic cover UGR<19, for rectangle shape fittings

QVESTRAM - a frame for recessed installation into gypsum plasterboard ceiling

Light source type:LEDColor temperature (K):2700, 3000, 4000, 5700, 6500
Color rendering index CRI:80-89Rated lifetime L80/B50 (h):80000
Degree of protection (IP):IP20, IP54Optical system:KN
nanoprizmatic cover
KO
opal cover
Light outlet:DirectMounting method:Surface mounting, Built-in, Einlege
Protection class:I
Nominal voltage (V):220...240
Fit for monitor workplace:YesType of dimming:1-10 V, DALI, Not dimmable
Colour consistency (McAdam ellipse):SDCM3Energy efficiency class of the built-in lamp:A+
Photobiologische Sicherheit nach EN 62 471:RG 0CE konform:Ja
Zobrazit více

Filters

Effective luminous flux (lm)

1750
7300

System power (W)

15
57
IBP2000A3KN600ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP2000A3KO600ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP2000A4KN600ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000A4KN600NDNZ
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000A4KN625ND
Effective luminous flux (lm): 1950
System power (W): 15
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000A4KO600DALI
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP2000A4KO600ND
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP2000A4KO600NDNZ3
Effective luminous flux (lm): 1850
System power (W): 15
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP2000B3KN600ND
Effective luminous flux (lm): 2050
System power (W): 19
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP2000B4KN600DALI
Effective luminous flux (lm): 2050
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP2000B4KN600ND
Effective luminous flux (lm): 2050
System power (W): 19
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000B4KN600ND/90
Effective luminous flux (lm): 1750
System power (W): 19
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000B4KN600NDNZ/90
Effective luminous flux (lm): 1750
System power (W): 19
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2000B4KO600DALIT
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP2000B4KO600ND
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP2000B4KO600NDNZ
Effective luminous flux (lm): 1950
System power (W): 19
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP2500A4KN600ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP2500C3KN600ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000A2KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 2700
Optical system: KO
No dim function: Yes
IBP3000A3KN600DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP3000A3KN600DALI/90
Effective luminous flux (lm): 2750
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP3000A3KN600DALI/F5W
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP3000A3KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000A3KN600ND/K
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000A3KN600ND/S31
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000A3KN625DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP3000A3KN625ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000A3KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP3000A3KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000A3KO600ND/F
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000A3KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000A3KO625DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP3000A3KO625ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000A4KN600DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000A4KN600DALI/90
Effective luminous flux (lm): 2750
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000A4KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN600ND/90
Effective luminous flux (lm): 2750
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN600ND/ED
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN600ND/FW
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN600ND/K
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN625DALI
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000A4KN625ND # 5009877
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN625NDNZ
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KN625NDNZ3
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000A4KO600DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP3000A4KO600DALI/K5
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP3000A4KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO600ND/FW/S59
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO600ND/K
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO600ND/KW
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO600ND/PRO
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO600NDNZ
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A4KO625DALI
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP3000A4KO625ND # S5509963
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000A5KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP3000A5KN600ND/90
Effective luminous flux (lm): 2750
System power (W): 23
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP3000A5KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP3000A6KN600ND
Effective luminous flux (lm): 3200
System power (W): 23
Color temperature (K): 6500
Optical system: KN
No dim function: Yes
IBP3000A6KO600ND
Effective luminous flux (lm): 3100
System power (W): 23
Color temperature (K): 6500
Optical system: KO
No dim function: Yes
IBP3000C3KN600DALI/COR
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP3000C3KN600ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000C3KN625ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3000C3KO600DALI
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP3000C3KO600ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000C3KO600ND/K
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000C3KO600NDNZ
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP3000C4KN600DALI
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000C4KN600DALI/COR
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000C4KN600DALINZ
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP3000C4KN600ND
Effective luminous flux (lm): 3000
System power (W): 23
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3000C4KO600DALI
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP3000C4KO600ND
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000C4KO600ND/K
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3000C4KO600ND/S59
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP3500A3KN600ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP3500A4KN600ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3500A4KN600ND/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3500A4KN600NDNZ/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP3500C4KN600ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A3KN600DALI
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KD
Dimming DALI: Yes
IBP4000A3KN600DALI/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP4000A3KN600DALIT
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP4000A3KN600ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000A3KN600ND/K
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000A3KN625DALI
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP4000A3KN625ND # 5009905
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000A3KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP4000A3KO600ND # S5098800
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO600ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO600NDNZ
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO625DALI # S5009880
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP4000A3KO625DALI/PRO # S5625750
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP4000A3KO625ND # 5009880
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO625ND/90 # S5009884
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO625ND/K # S4062538
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000A3KO625ND/PRO # 5009884
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A3PCO625DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 3000
Optical system: KOPC
Dimming DALI: Yes
IBP4000A4KN600DALI
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN600DALI/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN600DALINZ
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN600DALIT
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN600DALIT/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN600ND # S2625186
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600ND/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600ND/ED
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600ND/K
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600ND/K/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600ND/PRO # S5001325
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600NDNZ
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600NDNZ/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600NDNZ/K4S
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN600NDNZ3
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KN625DALI # S5003261
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000A4KN625ND # 5009906
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000A4KO600DALI
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000A4KO600DALI/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000A4KO600DALINZ
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000A4KO600DALIT
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000A4KO600ND # S5009881
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600ND/ED
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600ND/K
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600ND/K/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600ND/PRO
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600NDNZ
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO600NDNZ3
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO625DALI # S5098811
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000A4KO625ND # 5009881
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO625ND/90 # S5004125
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO625ND/PRO # 5009883
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4KO625NDNZ # S5509881
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000A4PCO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: KOPC
No dim function: Yes
IBP4000A4PCO625ND # S4004625
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
No dim function: Yes
IBP4000A4PCO625NDNZ # S4009625
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 4000
Optical system: PCO
No dim function: Yes
IBP4000A5KN600ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP4000A5KN600ND/90
Effective luminous flux (lm): 3750
System power (W): 32
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP4000A5KN600ND/K
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP4000A5KN625ND # 5009907
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP4000A5KO600ND # S5098820
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A5KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A5KO600ND/K/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A5KO600NDNZ3
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A5KO625ND # 5009882
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A5KO625ND/90 # S4000062
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP4000A6KN600ND
Effective luminous flux (lm): 4400
System power (W): 32
Color temperature (K): 6500
Optical system: KN
No dim function: Yes
IBP4000A6KO600ND
Effective luminous flux (lm): 4100
System power (W): 32
Color temperature (K): 6500
Optical system: KO
No dim function: Yes
IBP4000A6KO600ND/90
Effective luminous flux (lm): 3500
System power (W): 32
Color temperature (K): 6500
Optical system: KO
No dim function: Yes
IBP4000C2KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 2700
Optical system: KO
No dim function: Yes
IBP4000C3KN600DALI/S129
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP4000C3KN600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000C3KN600ND/F
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000C3KN625ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP4000C3KO600DALI
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP4000C3KO600DALI/90
Effective luminous flux (lm): 3350
System power (W): 32
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP4000C3KO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000C3KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000C3KO625ND # 5009885
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000C3KO625ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP4000C4KN600DALI
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP4000C4KN600ND
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000C4KN600ND/90
Effective luminous flux (lm): 3400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000C4KN600NDNZ/90
Effective luminous flux (lm): 3400
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000C4KN625ND # S500986
Effective luminous flux (lm): 4000
System power (W): 32
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP4000C4KO600DALI
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000C4KO600DALI/90
Effective luminous flux (lm): 3300
System power (W): 32
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP4000C4KO600ND
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000C4KO600ND/90
Effective luminous flux (lm): 3300
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000C4KO600ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000C4KO625ND # 5009886
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP4000C4KO625ND/K
Effective luminous flux (lm): 3900
System power (W): 32
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP5000A3KN600DALI/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP5000A3KN600ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP5000A3KO600DALI
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP5000A3KO600DALI/F5W
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP5000A3KO600DALINZ
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP5000A3KO600ND
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP5000A3KO600ND/FW
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP5000A3KO600NDNZ
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP5000A3KO625DALI
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP5000A3KO625ND
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP5000A4KN600DALI
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP5000A4KN600DALI/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP5000A4KN600DALIT/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP5000A4KN600ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN600ND/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN600NDNZ
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN600NDNZ/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN600NDNZ3
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN600NDNZ3/90
Effective luminous flux (lm): 4850
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KN625DALI
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP5000A4KN625ND # S5005222
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000A4KO600DALI
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP5000A4KO600DALI/90
Effective luminous flux (lm): 4500
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP5000A4KO600ND
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP5000A4KO600NDNZ
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP5000A4KO600NDNZ3
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP5000A5KN600ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP5000A5KN600NDNZ3
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP5000A5KO600ND
Effective luminous flux (lm): 5300
System power (W): 44
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP5000A6KN625ND
Effective luminous flux (lm): 5700
System power (W): 44
Color temperature (K): 6500
Optical system: KN
No dim function: Yes
IBP5000C3KN600ND
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP5000C3KO600DALI
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP5000C4KN600ND
Effective luminous flux (lm): 5100
System power (W): 42
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000C4KN600ND/90
Effective luminous flux (lm): 4350
System power (W): 42
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000C4KN600ND/K
Effective luminous flux (lm): 5100
System power (W): 42
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000C4KN600ND/S226
Effective luminous flux (lm): 5100
System power (W): 42
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP5000C4KO600ND
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP5000C4KO600NDNZ
Effective luminous flux (lm): 5000
System power (W): 42
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A3KN600ND
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 3000
Optical system: KN
No dim function: Yes
IBP6000A3KO600DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP6000A3KO600DALI/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
Dimming DALI: Yes
IBP6000A3KO600DALINZ
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000A3KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000A3KO600ND/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000A3KO600NDNZ
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000A3KO625ND # 5009799
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000A4KN600DALI # S5099988
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP6000A4KN600DALI/90
Effective luminous flux (lm): 5600
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP6000A4KN600DALIT
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP6000A4KN600ND
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000A4KN600ND/90
Effective luminous flux (lm): 5600
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000A4KN600NDNZ
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000A4KN625ND
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000A4KN625ND/90
Effective luminous flux (lm): 5600
System power (W): 55
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000A4KO600DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP6000A4KO600DALI/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP6000A4KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A4KO600ND/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A4KO600NDNZ
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A4KO625DALI # S5009801
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP6000A4KO625DALI/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP6000A4KO625ND # 5009800
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A4KO625ND/90 # S5009800
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000A4PCO600DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 4000
Optical system: KOPC
Dimming DALI: Yes
IBP6000A5KN625ND # S5089555
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 5700
Optical system: KN
No dim function: Yes
IBP6000A5KO600DALI
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
Dimming DALI: Yes
IBP6000A5KO600DALIBTC
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
Dimming DALI: Yes
IBP6000A5KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP6000A5KO600ND/90
Effective luminous flux (lm): 5500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP6000A5KO625ND # 5009801
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP6000A5KO625ND/90 # S5002388
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
IBP6000A6KN600ND
Effective luminous flux (lm): 7300
System power (W): 55
Color temperature (K): 6500
Optical system: KN
No dim function: Yes
IBP6000A6KO600ND
Effective luminous flux (lm): 6500
System power (W): 55
Color temperature (K): 6500
Optical system: KO
No dim function: Yes
IBP6000C3KN600DALI
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Dimming DALI: Yes
IBP6000C3KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 3000
Optical system: KO
No dim function: Yes
IBP6000C4KN600DALI
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP6000C4KN600DALI/90
Effective luminous flux (lm): 5900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Dimming DALI: Yes
IBP6000C4KN600ND
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000C4KN600ND/90
Effective luminous flux (lm): 5900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000C4KN600ND/FW
Effective luminous flux (lm): 6900
System power (W): 57
Color temperature (K): 4000
Optical system: KN
No dim function: Yes
IBP6000C4KO600DALI
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Dimming DALI: Yes
IBP6000C4KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 4000
Optical system: KO
No dim function: Yes
IBP6000C5KO600DALI
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Dimming DALI: Yes
IBP6000C5KO600ND
Effective luminous flux (lm): 6500
System power (W): 57
Color temperature (K): 5700
Optical system: KO
No dim function: Yes
Show all versions

Projects realized with lumEGG luminaires:


Shopping mall Tel-Aviv

Reference detail

Athletic hall - Denmark

MODUS MEGAL

Reference detail

Street lighting Horni Bezdekov

MODUS LVLEDOS

Reference detail
See more references


We are here to help

We'll advise you all, we have outstanding support.

Dipl. Ing. Magdalena Ragauerova

lumEGG Support - Technische Beratung, Produkt Auswahl, Planung

Mobile Phone: 0152-26714590

Product support

Product support

Do not know what kind of lighting is best for you?

Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
