lumEGG GAME

LED Sportstättenleuchte lumEGG+ IP40

lumEGG GAME

Price from:

On request
Contacts

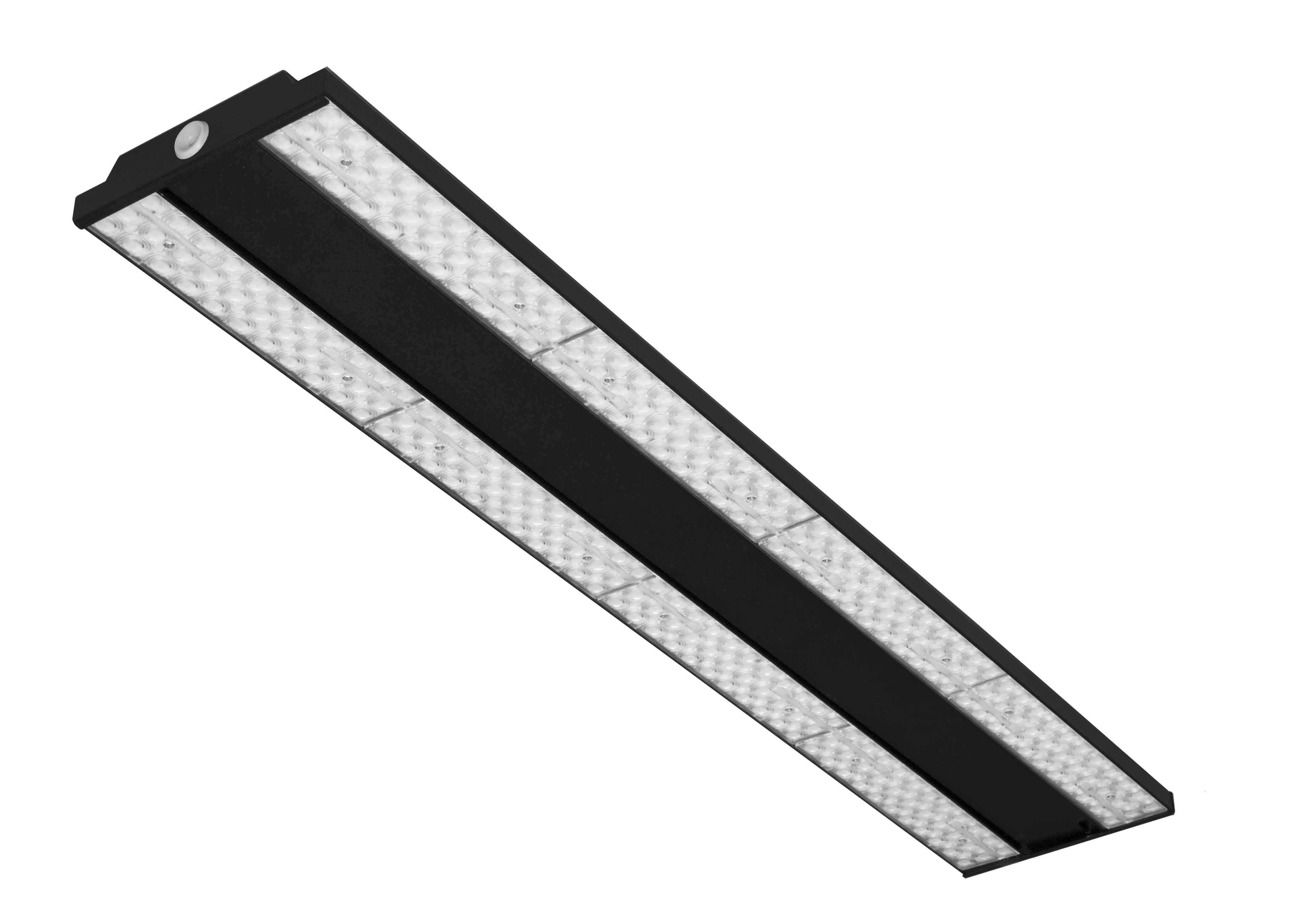

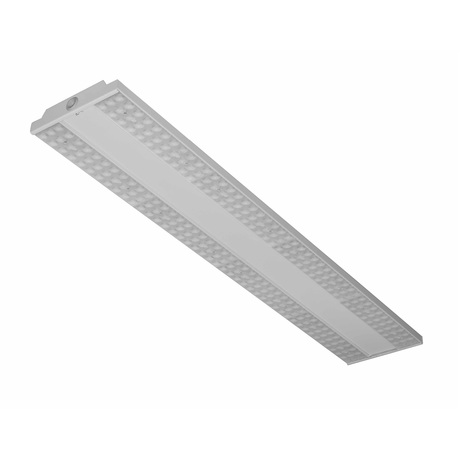

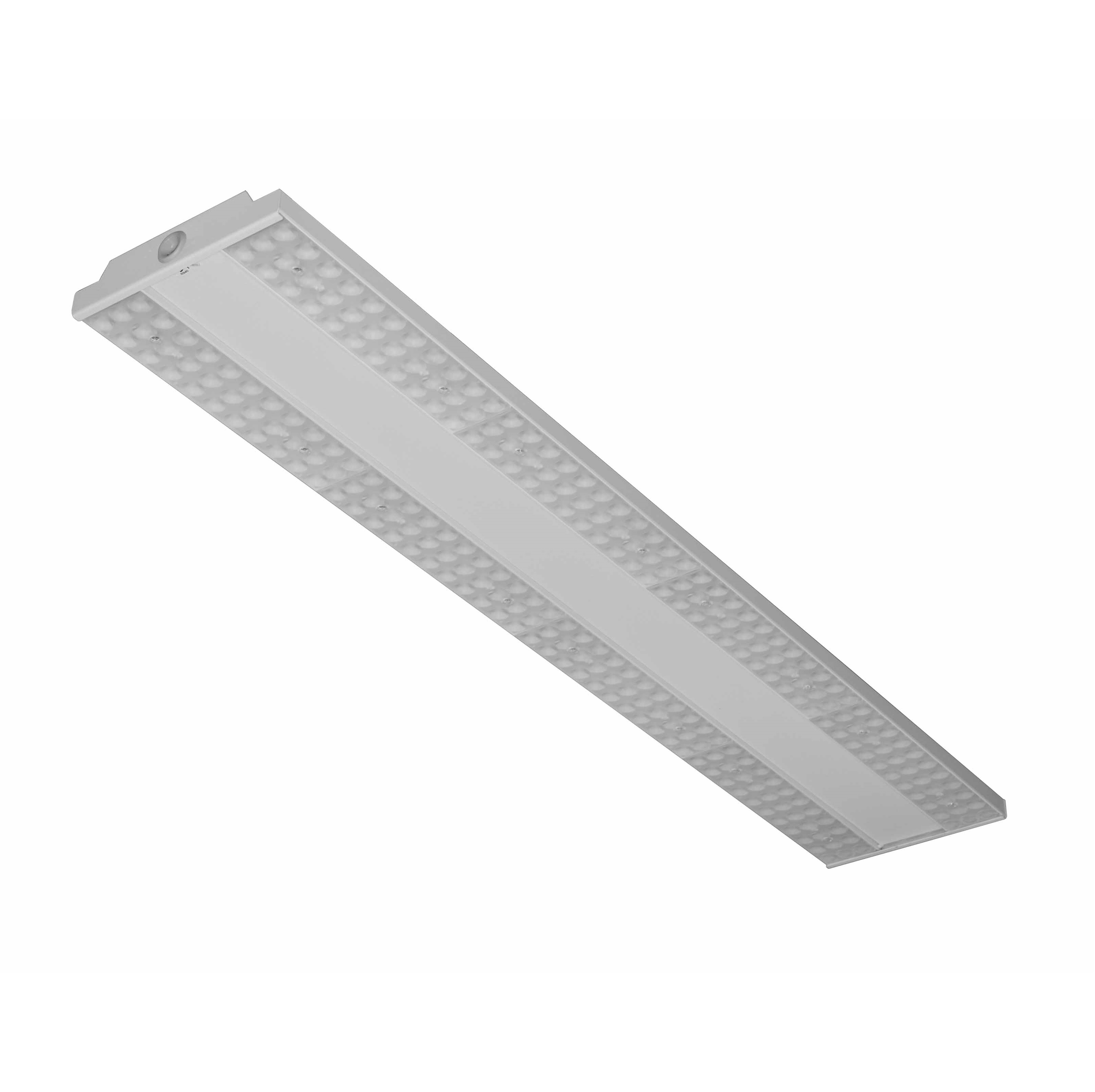

180lm/W, DIN 0710-13, Ballwurfsicher, UGR < 22, lumEGG+ individuelle blendfreie LED Linsentechnologie, 5 Lichtcharakteristiken, austauschbare LED Module und Treiber, Easy Installation, Design

Einsatz: Sporthallen

GAME = Pendel- und Anbau- Wandleuchte (s. Zubehör), IP40, pulverbeschichtetes korrosionsfreies Aluminiumprofil, lumEGG+ =individuelle blendfreie LED Linsentechnologie für optimale Lichtverteilung, BWS Ballwurfsicher, zertifiziert nach DIN 0710-13, UGR < 22, wahlweise Tief, Extra Tief, Breit, Extra Breit, Asymmetrisch. Einsatzbereich -15 bis +45°C, Austauschbare LED Module und Triber, Middle Power LED Dioden, SDCM 3, Aluminium LED Board für bessere Kühlung, CRI 80-89

GAMEP = wie GAME jedoch als Lichtbandleuchte

Filters

Effective luminous flux (lm)

5500
34500

System power (W)

30
196
GAME050M8/4W90B/ND/P
Effective luminous flux (lm): 5500
System power (W): 30
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME050M8/4W90C/ND
Effective luminous flux (lm): 5500
System power (W): 30
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME050S4/4N60B/ND
Effective luminous flux (lm): 5500
System power (W): 30
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME080M8/4W90B/ND
Effective luminous flux (lm): 7500
System power (W): 42
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME080M8/4W90C/ND
Effective luminous flux (lm): 7500
System power (W): 42
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME080S4/3W90B/DALI
Effective luminous flux (lm): 7500
System power (W): 45
Color temperature (K): 3000
Length (mm): 590
Dimming DALI: Yes
GAME080S4/3W90B/ND
Effective luminous flux (lm): 7500
System power (W): 45
Color temperature (K): 3000
Length (mm): 590
No dim function: Yes
GAME080S4/4EW110B/DALI
Effective luminous flux (lm): 8100
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
Dimming DALI: Yes
GAME080S4/4EW110B/ND
Effective luminous flux (lm): 8100
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME080S4/4N60B/DALI
Effective luminous flux (lm): 7800
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
Dimming DALI: Yes
GAME080S4/4N60B/ND
Effective luminous flux (lm): 7800
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME080S4/4W90B/DALI
Effective luminous flux (lm): 7500
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
Dimming DALI: Yes
GAME080S4/4W90B/ND # S8712499
Effective luminous flux (lm): 7500
System power (W): 45
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME150M8/4EW110B/DALI
Effective luminous flux (lm): 16000
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME150M8/4EW110B/ND
Effective luminous flux (lm): 16000
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME150M8/4N60B/DALI
Effective luminous flux (lm): 15800
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME150M8/4N60B/DALI/P
Effective luminous flux (lm): 15800
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME150M8/4N60B/ND # S5009588
Effective luminous flux (lm): 15800
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME150M8/4N60C/ND
Effective luminous flux (lm): 15800
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME150M8/4W90B/DALI/P
Effective luminous flux (lm): 15500
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME150M8/4W90B/DALINZ
Effective luminous flux (lm): 15500
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME150M8/4W90B/ND # 4904900
Effective luminous flux (lm): 15500
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME150M8/4W90B/ND/P
Effective luminous flux (lm): 15500
System power (W): 89
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME150S8/4EW110B/DALI
Effective luminous flux (lm): 16000
System power (W): 89
Color temperature (K): 4000
Length (mm): 590
Dimming DALI: Yes
GAME150S8/4EW110B/ND
Effective luminous flux (lm): 16000
System power (W): 89
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME150S8/4N60B/ND
Effective luminous flux (lm): 15800
System power (W): 89
Color temperature (K): 4000
Length (mm): 585
No dim function: Yes
GAME150S8/4W90B/ND
Effective luminous flux (lm): 15500
System power (W): 89
Color temperature (K): 4000
Length (mm): 590
No dim function: Yes
GAME180M8/4ASB/NDMULTI
Effective luminous flux (lm): 17500
System power (W): 98
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME180M8/4N60B/NDMULTI/P
Effective luminous flux (lm): 17500
System power (W): 98
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME180M8/4W90B/NDMULTI
Effective luminous flux (lm): 17500
System power (W): 98
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME180M8/4W90B/NDMULTI/P
Effective luminous flux (lm): 17500
System power (W): 98
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME200XL10/4EW110B/DALI
Effective luminous flux (lm): 19800
System power (W): 110
Color temperature (K): 4000
Length (mm): 1450
Dimming DALI: Yes
GAME200XL10/4EW110B/ND
Effective luminous flux (lm): 19800
System power (W): 110
Color temperature (K): 4000
Length (mm): 1450
No dim function: Yes
GAME200XL10/4N60B/ND
Effective luminous flux (lm): 19800
System power (W): 110
Color temperature (K): 4000
Length (mm): 1450
No dim function: Yes
GAME200XL10/4W90B/ND # S5012444
Effective luminous flux (lm): 19500
System power (W): 110
Color temperature (K): 4000
Length (mm): 1450
No dim function: Yes
GAME250L12/4N60B/DALI
Effective luminous flux (lm): 26000
System power (W): 148
Color temperature (K): 4000
Length (mm): 1735
Dimming DALI: Yes
GAME250L12/4N60B/ND
Effective luminous flux (lm): 26000
System power (W): 148
Color temperature (K): 4000
Length (mm): 1735
No dim function: Yes
GAME250L12/4W90B/DALI
Effective luminous flux (lm): 25200
System power (W): 148
Color temperature (K): 4000
Length (mm): 1735
Dimming DALI: Yes
GAME250L12/4W90B/ND # S5002541
Effective luminous flux (lm): 25200
System power (W): 148
Color temperature (K): 4000
Length (mm): 1735
No dim function: Yes
GAME250XL10/3W90B/DALI
Effective luminous flux (lm): 24500
System power (W): 145
Color temperature (K): 3000
Length (mm): 1450
Dimming DALI: Yes
GAME250XL10/4EW110B/DALI
Effective luminous flux (lm): 26000
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
Dimming DALI: Yes
GAME250XL10/4EW110B/ND
Effective luminous flux (lm): 26000
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
No dim function: Yes
GAME250XL10/4W90B/DALI
Effective luminous flux (lm): 24500
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
Dimming DALI: Yes
GAME250XL10/4W90B/DALI/P
Effective luminous flux (lm): 24500
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
Dimming DALI: Yes
GAME250XL10/4W90B/HSW
Effective luminous flux (lm): 24500
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
GAME250XL10/4W90B/NDMULTI/P
Effective luminous flux (lm): 24500
System power (W): 145
Color temperature (K): 4000
Length (mm): 1450
No dim function: Yes
GAME250XM12/4W90B/ND
Effective luminous flux (lm): 22500
System power (W): 148
Color temperature (K): 4000
Length (mm): 875
No dim function: Yes
GAME300L12/4EW110B/DALI
Effective luminous flux (lm): 30000
System power (W): 176
Color temperature (K): 4000
Length (mm): 1735
Dimming DALI: Yes
GAME300L12/4EW110B/ND
Effective luminous flux (lm): 30000
System power (W): 176
Color temperature (K): 4000
Length (mm): 1735
No dim function: Yes
GAME300L12/4N60B/ND
Effective luminous flux (lm): 29800
System power (W): 176
Color temperature (K): 4000
Length (mm): 1735
No dim function: Yes
GAME350M16/4ASB/DALI
Effective luminous flux (lm): 32800
System power (W): 196
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME350M16/4ASB/ND
Effective luminous flux (lm): 32800
System power (W): 196
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME350M16/4N60B/DALI
Effective luminous flux (lm): 34500
System power (W): 196
Color temperature (K): 4000
Length (mm): 1165
Dimming DALI: Yes
GAME350M16/4N60B/ND
Effective luminous flux (lm): 34500
System power (W): 196
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
GAME350M16/4W90B/ND # S5005247
Effective luminous flux (lm): 33800
System power (W): 196
Color temperature (K): 4000
Length (mm): 1165
No dim function: Yes
Show all versions

Product page - PDF

KL_EN_GAME.pdf >

CE declaration

POS_CZAJ_GAME_22-24.pdf >

Assembly instruction

ZL_1140001103_GAME.pdf >
