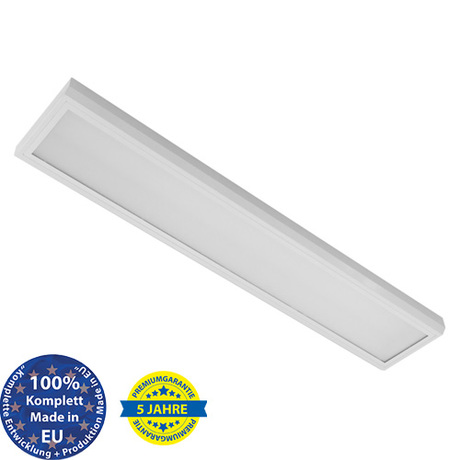

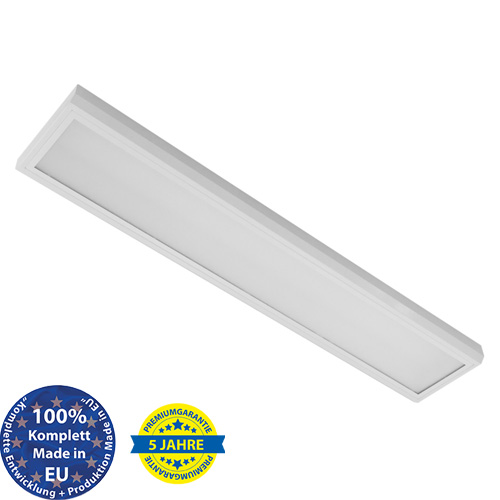

lumEGG ESO

Surface LED fitting with cover

lumEGG ESO
MODUS ESO RMMODUS ESO RM
11 L80_80000_h.jpg
3 E01_230V_50Hz.png
9 SDCM_3.png
10 3_EEC_A_plus_1.png
14 RGO EN62471.png

Price from:

278 Kč
( 337 Kč Price including VAT )
Contacts

Body:

White painted (RAL 9016) metal sheet



Optic:

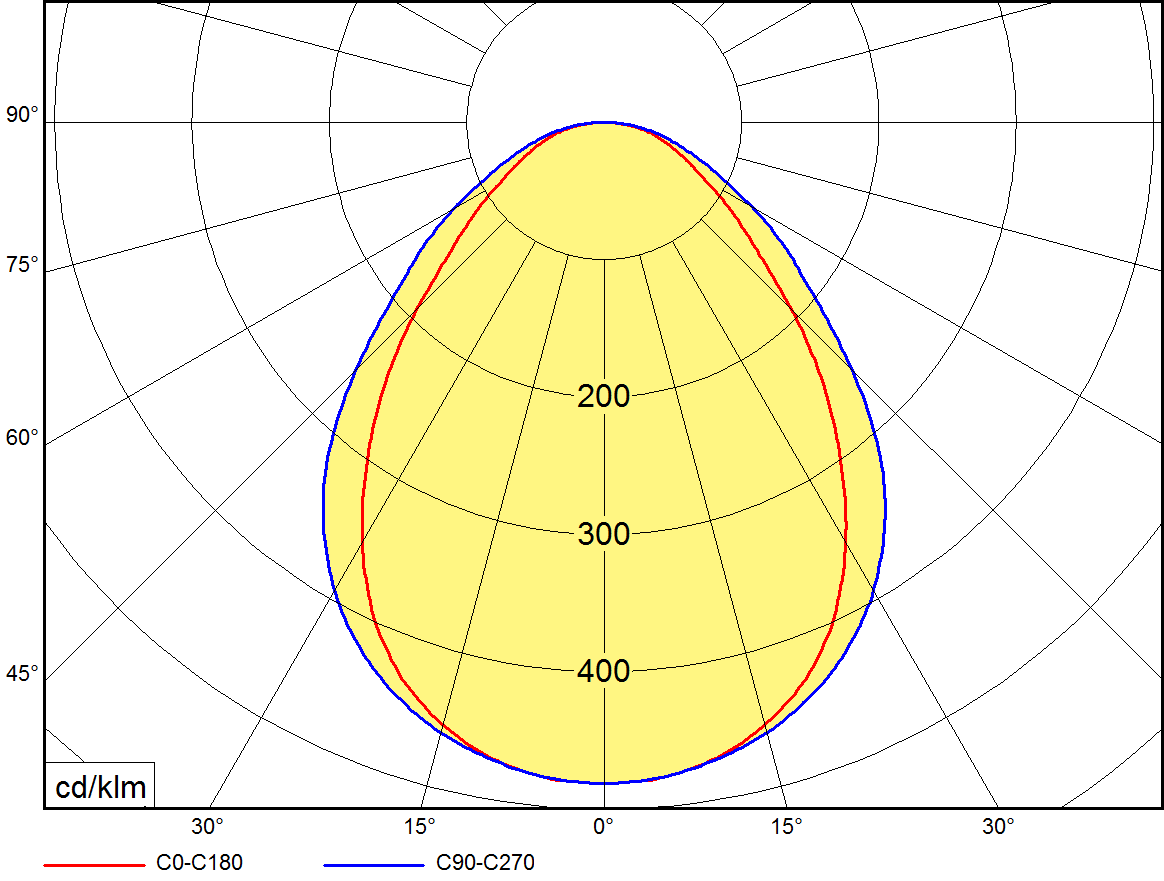

KN - microprizmatic PMMA diffusor JUNGBECKER

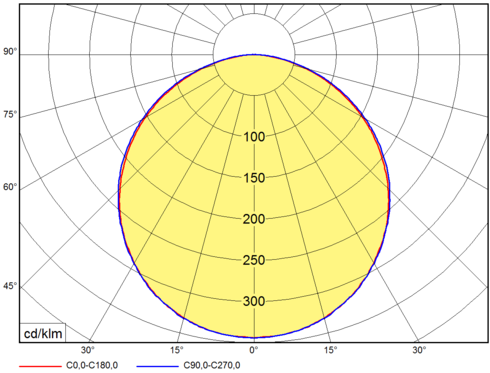

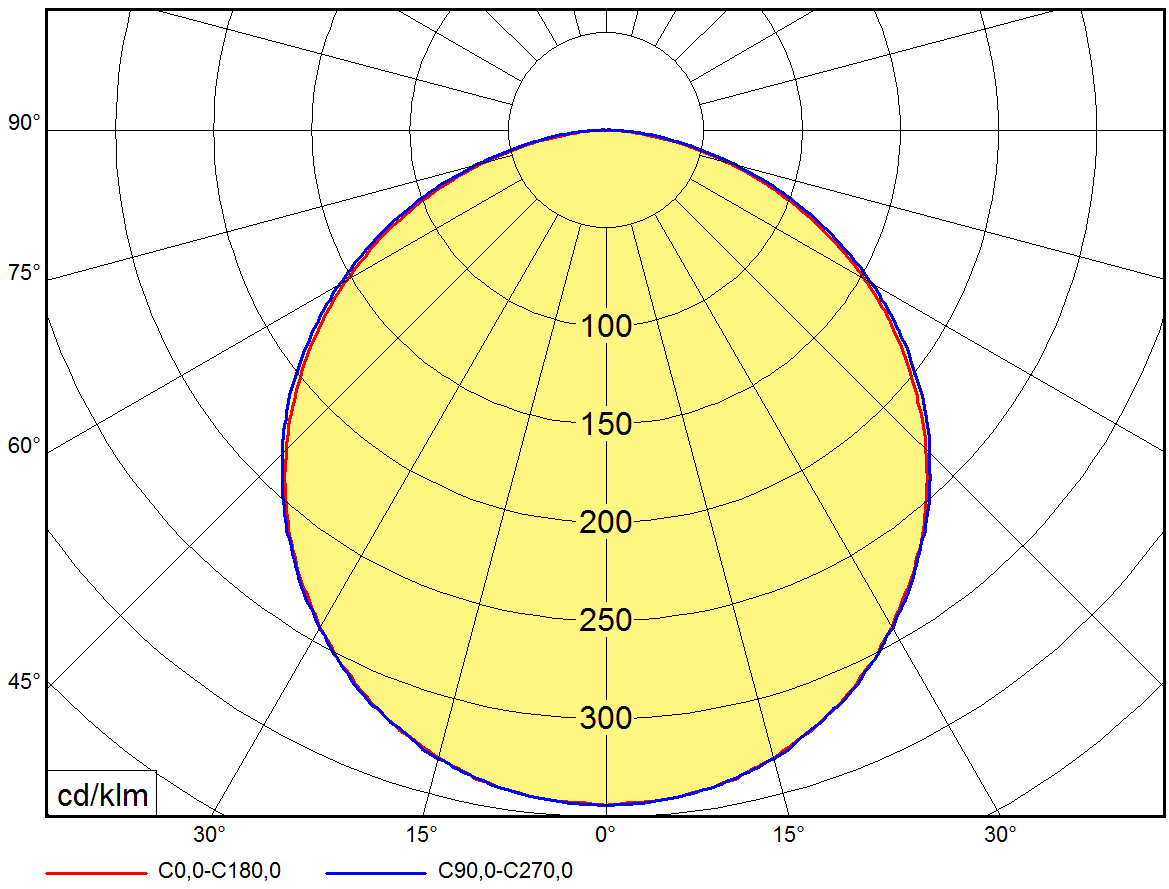

KO - opal PS cover



LED:

Mid Power LED

CRI 80 (CRI 90 on request)

3...warm white 3000K

4...cold white 4000K



Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V



Application:

Default way of using is a surface installation. Using suspension set ZH22 also pendant installation is possible.



Accessories:

ZH22 - suspension set

Light source type:LEDColor temperature (K):2700...6500, 2700, 3000, 4000, 5700, 6500
Color temperature controllable (K):YesColor rendering index CRI:80-89
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP40
Optical system:KN
nanoprizmatic cover
KO
opal cover
Light outlet:Direct
Mounting method:Surface mounting, Pendant
Protection class:I
Nominal voltage (V):220...240Type of dimming:1-10 V, DALI, Not dimmable
Colour consistency (McAdam ellipse):SDCM3Energy efficiency class of the built-in lamp:A+
Photobiologische Sicherheit nach EN 62 471:RG 0CE konform:Ja
Zobrazit více

Filters

Effective luminous flux (lm)

1300
7700

System power (W)

16
57
ESO1000RSKO3ND
Effective luminous flux (lm): 1300
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 240
No dim function: Yes
ESO2000RMKN3NDNZ
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO2000RMKN4ND
Effective luminous flux (lm): 2200
System power (W): 16
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO2000RMKN4NDNZ
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO2000RMKO4NDNZ
Effective luminous flux (lm): 2200
System power (W): 18
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO2000RSKN3ND
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 3000
Optical system: KN
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKN4DALI
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Length (mm): 610
Width (mm): 240
Dimming DALI: Yes
ESO2000RSKN4DALI/90
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Length (mm): 610
Width (mm): 240
Dimming DALI: Yes
ESO2000RSKN4ND
Effective luminous flux (lm): 2300
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKN4ND/90
Effective luminous flux (lm): 2000
System power (W): 20
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 240
No dim function: Yes
ESO2000RSKO2ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 2700
Optical system: KO
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKO3DALI # S5009813
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
Length (mm): 610
Width (mm): 240
Dimming DALI: Yes
ESO2000RSKO3ND # 5009813
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKO3ND/90
Effective luminous flux (lm): 1900
System power (W): 20
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO2000RSKO3ND/9005
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Optical system: KO
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKO4DALI
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Length (mm): 610
Width (mm): 240
Dimming DALI: Yes
ESO2000RSKO4DALI/90
Effective luminous flux (lm): 1900
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Length (mm): 610
Width (mm): 240
Dimming DALI: Yes
ESO2000RSKO4ND # 5009814
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2000RSKO4ND/90
Effective luminous flux (lm): 1900
System power (W): 20
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 240
No dim function: Yes
ESO2000RSKO5ND # S5005144
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 5700
Optical system: KO
Length (mm): 610
Width (mm): 240
No dim function: Yes
ESO2500RMKN4ND
Effective luminous flux (lm): 2550
System power (W): 19
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN3DALI
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKN3ND # S5095559
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN3ND/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN3NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN4DALI
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKN4DALI/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKN4ND # S3000499
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN4ND/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN4NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN4NDNZ/90
Effective luminous flux (lm): 3000
System power (W): 26
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN5ND # S5001222
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 5700
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKN6ND
Effective luminous flux (lm): 3500
System power (W): 26
Color temperature (K): 6500
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO3DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKO3ND
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO3ND/90
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO3NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO4DALI
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKO4DALI/90
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO3000RMKO4ND # S3000547
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO4ND/90
Effective luminous flux (lm): 2800
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000RMKO4NDNZ
Effective luminous flux (lm): 3300
System power (W): 26
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO3000SSKN3DALI # S5036699
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO3000SSKN3ND
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKN3ND/9005
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKN4DALI
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO3000SSKN4DALI/90
Effective luminous flux (lm): 2900
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO3000SSKN4ND # S5008984
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKN4ND/90
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKN4ND/9005
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKN4NDNZ
Effective luminous flux (lm): 3400
System power (W): 23
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKO3DALI
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO3000SSKO3ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKO3ND/9005
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKO3NDNZ
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKO4DALI
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO3000SSKO4ND
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO3000SSKO4NDNZ
Effective luminous flux (lm): 3300
System power (W): 23
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000RMKN3DALI
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKN3ND # S3254357
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN3ND/7040
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN3NDNZ
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 3000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN4DALI
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKN4DALI/90
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKN4ND # S5098020
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN4ND/90 # S5009892
Effective luminous flux (lm): 4000
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN4ND/PRO
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN4NDNZ
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN4NDNZ/90
Effective luminous flux (lm): 4000
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN5ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 5700
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKN6DALI
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 6500
Optical system: KN
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKN6ND
Effective luminous flux (lm): 4600
System power (W): 38
Color temperature (K): 6500
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO3DALI # S5098815
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO3ND # 5009815
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO3ND/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO3NDNZ
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 3000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO4DALI # S5009816
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO4DALI/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO4DALINZ3 # S5098160
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO4ND # 5009816
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO4ND/90
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO4ND/PRO # 5009903
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO4NDNZ
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO4NDNZ3 # S1062516
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO5DALI # S5089816
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 5700
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO5ND # S5098816
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 5700
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO5ND/PRO # S5009903
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 5700
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKO6DALI/BTC/90 # S5001254
Effective luminous flux (lm): 3800
System power (W): 38
Color temperature (K): 6500
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000RMKO6ND # S5283686
Effective luminous flux (lm): 4400
System power (W): 38
Color temperature (K): 6500
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO4000RMKOMIX
Color temperature (K): 2700...6500
Optical system: KO
Length (mm): 1210
Width (mm): 240
Dimming DALI: Yes
ESO4000SSKN3DALI
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKN3DALI/90
Effective luminous flux (lm): 4250
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKN3ND
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN3ND/9005
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN3NDNZ
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN4DALI
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKN4DALI/90
Effective luminous flux (lm): 4250
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKN4ND
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN4ND/90
Effective luminous flux (lm): 4250
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN4NDNZ
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN5ND
Effective luminous flux (lm): 5000
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKN5ND/90
Effective luminous flux (lm): 4250
System power (W): 35
Color temperature (K): 5700
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO3DALI # S5009890
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKO3ND # 5009890
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO3ND/90
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO4DALI # S5000186
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO4DALI/90
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKO4DALIT
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO4000SSKO4ND # 5009891
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO4ND/90
Effective luminous flux (lm): 4100
System power (W): 35
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO4NDNZ3 # S5007484
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO4000SSKO6DALI
Effective luminous flux (lm): 4800
System power (W): 35
Color temperature (K): 6500
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO5000RLKN3DALI
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKN3ND # S5124899
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN3ND/90
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4DALI
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKN4DALI/90
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKN4DALI/BTC
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
ESO5000RLKN4DALINZ
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKN4ND # S7548504
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4ND/90
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4ND/P1
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4NDMULTI
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4NDMULTI/90
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4NDMULTI/P
Effective luminous flux (lm): 6100
System power (W): 44
ESO5000RLKN4NDMULTINZ
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN4NDNZ
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKN5ND # S5001221
Effective luminous flux (lm): 6100
System power (W): 44
Color temperature (K): 5700
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO3DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKO3ND # S5813213
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO3ND/90
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO3NDNZ3
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO4DALI
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKO4DALI/90
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO5000RLKO4ND
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO4ND/90
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO4NDMULTI # S5003245
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RLKO4NDNZ
Effective luminous flux (lm): 5800
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO5000RMKN4NDMULTI
Effective luminous flux (lm): 4800
System power (W): 39
Color temperature (K): 4000
Optical system: KN
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO5000RMKO4NDMULTI
Effective luminous flux (lm): 4800
System power (W): 39
Color temperature (K): 4000
Optical system: KO
Length (mm): 1210
Width (mm): 240
No dim function: Yes
ESO5000SSKN4ND
Effective luminous flux (lm): 6000
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO5000SSKN4ND/90
Effective luminous flux (lm): 5100
System power (W): 44
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO5000SSKO4DALI/90
Effective luminous flux (lm): 4600
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO5000SSKO4ND
Effective luminous flux (lm): 5400
System power (W): 44
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO6000RLKN2ND/90 # S5002254
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 2700
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN3DALI
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKN3ND # S3254356
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN3ND/90
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 3000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN4DALI
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKN4DALI/90
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKN4ND # S6000604
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN4ND/90 # S5995700
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN4ND/PRO
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN4NDNZ
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 4000
Optical system: KN
Length (mm): 1510
Width (mm): 240
ESO6000RLKN5ND # S6875605
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 5700
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN5ND/90
Effective luminous flux (lm): 6400
System power (W): 57
Color temperature (K): 5700
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKN6ND
Effective luminous flux (lm): 7500
System power (W): 57
Color temperature (K): 6500
Optical system: KN
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO2DALI # S8375602
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 2700
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO3DALI # S5009897
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO3ND # 5009897
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO3ND/90
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 3000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO4DALI # S5098898
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO4DALI/90
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO4DALI/PRO # S1062560
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO4ND # 5009898
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO4ND/90 # S5098980
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO4ND/PRO # 5009900
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 4000
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO5DALI # S5099598
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO5DALI/90
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Length (mm): 1510
Width (mm): 240
Dimming DALI: Yes
ESO6000RLKO5ND # 5019898
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO5ND/90 # S8301111
Effective luminous flux (lm): 6200
System power (W): 57
Color temperature (K): 5700
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO6ND # S5119898
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 6500
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000RLKO6ND/PRO # S5500990
Effective luminous flux (lm): 7200
System power (W): 57
Color temperature (K): 6500
Optical system: KO
Length (mm): 1510
Width (mm): 240
No dim function: Yes
ESO6000SSKN3DALI
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO6000SSKN3ND
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO6000SSKN4DALI
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO6000SSKN4DALI/90
Effective luminous flux (lm): 6550
System power (W): 56
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO6000SSKN4ND
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO6000SSKN4ND/90
Effective luminous flux (lm): 6550
System power (W): 56
Color temperature (K): 4000
Optical system: KN
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO6000SSKO3DALI
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 3000
Optical system: KN
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO6000SSKO3ND # 5009892
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 3000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
ESO6000SSKO4DALI
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
Dimming DALI: Yes
ESO6000SSKO4ND # 5009896
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 4000
Optical system: KO
Length (mm): 560
Width (mm): 560
No dim function: Yes
Show all versions

Projects realized with lumEGG luminaires:


Shopping mall Tel-Aviv

Reference detail

Athletic hall - Denmark

MODUS MEGAL

Reference detail

Street lighting Horni Bezdekov

MODUS LVLEDOS

Reference detail
See more references


We are here to help

We'll advise you all, we have outstanding support.

Dipl. Ing. Magdalena Ragauerova

lumEGG Support - Technische Beratung, Produkt Auswahl, Planung

Mobile Phone: 0152-26714590

Product support

Product support

Do not know what kind of lighting is best for you?

Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
